HOSCH Pre-Scraper Type HD-PU-S
Highest productivity with a low personnel level
Today increased uptime to meet production targets and output demands with a reduced number of personnel is an absolute must for operators of conveyor belt systems worldwide. Therefore they all require scrapers that are simple and user-friendly and achieve maximum cleaning efficiency.
In case the main scraper cannot cope with the thickness of the material sticking to the belt surface, a so-called pre-scraper has to be installed
HOSCH has taken up this challenge and developed the HOSCH pre-scraper type HD-PU with the following main features:
/ Very simple handling for easy installation and easy maintenance
/ Improved lifetime through tungsten carbide cleaning tips
/ High economic efficiency in combination with the HOSCH main scrapers
In combination with the HOSCH main scrapers, which have a worldwide reputation for unsurpassed efficiency, the HOSCH pre-scraper type HD-PU reduces cleaning and operating costs as well as unnecessary downtime.

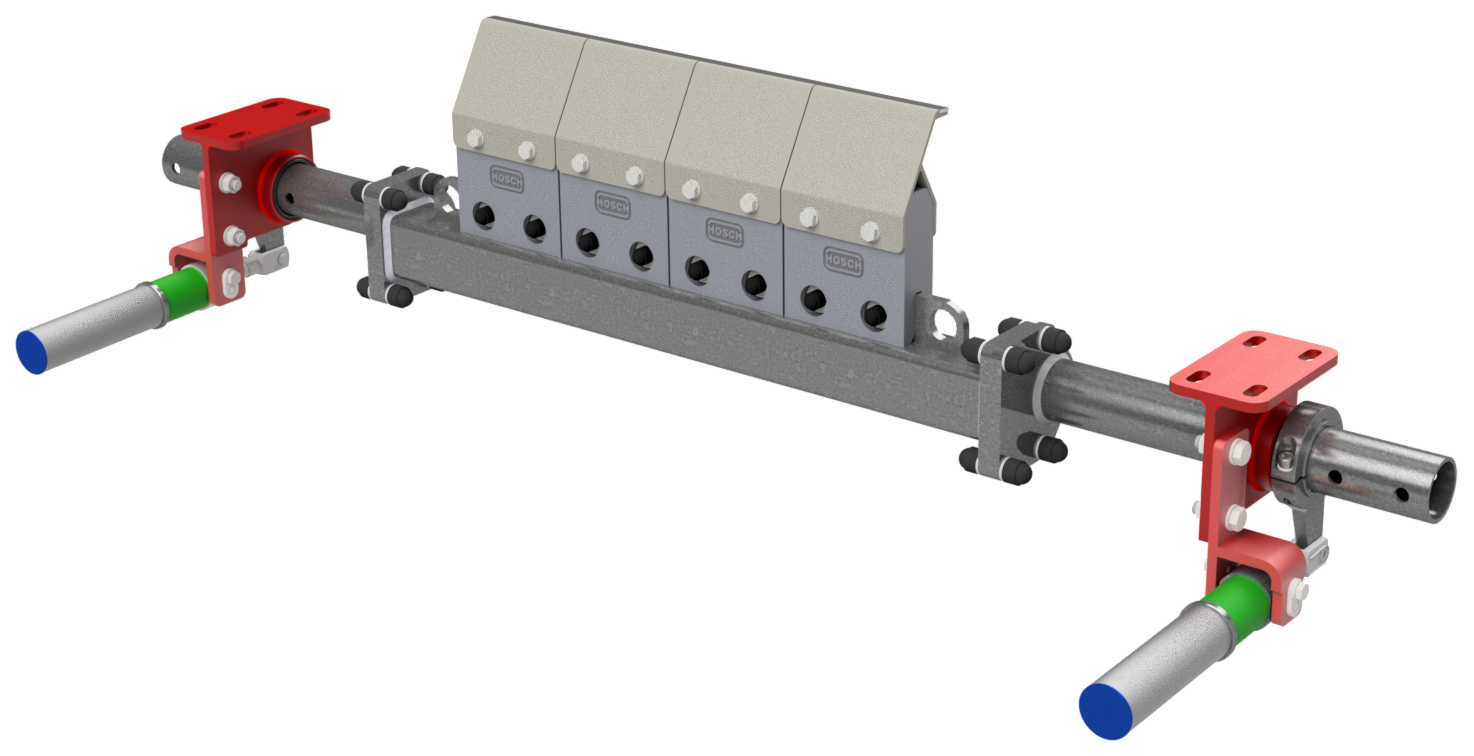

Overview and Product Information
| Data/Type | HD-PU-S1 | HD-PU-S2 | HD-PU-S3 |
|---|---|---|---|
| Belt width (mm) | 500 - 1600 | 1000 - 1600 | 1800 - 2400 |
| Belt speed (m/s) | max. 3,5 | max. 4,5 | max. 7,5 |
| Reversible operation | ✔️ | ✔️ | ✔️ |
